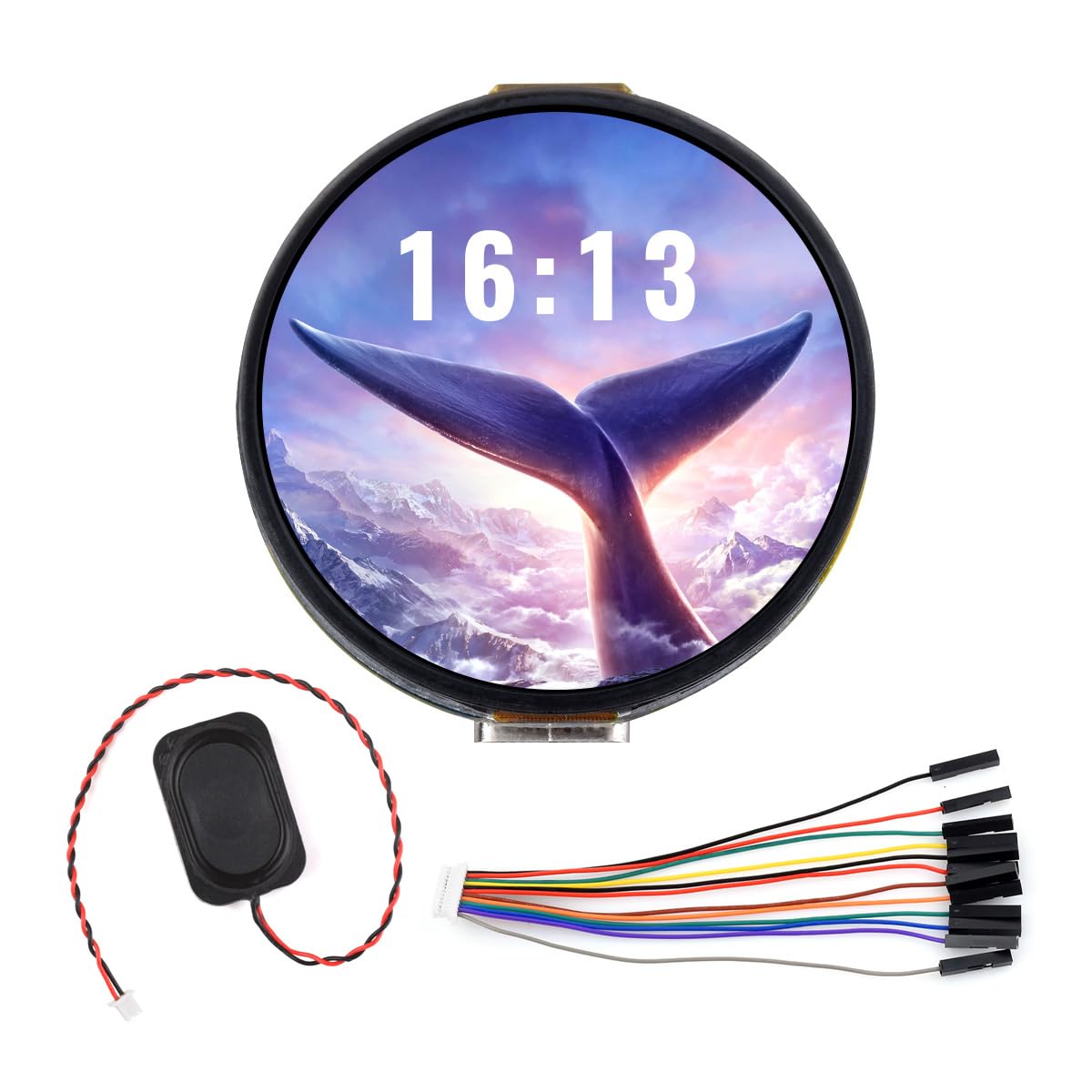

Waveshare ESP32-S3 1.32inch AMOLED Round Touch Display Development Board, 466x466 Pixels, QSPI Interface, Supports Wi-Fi and BT 5

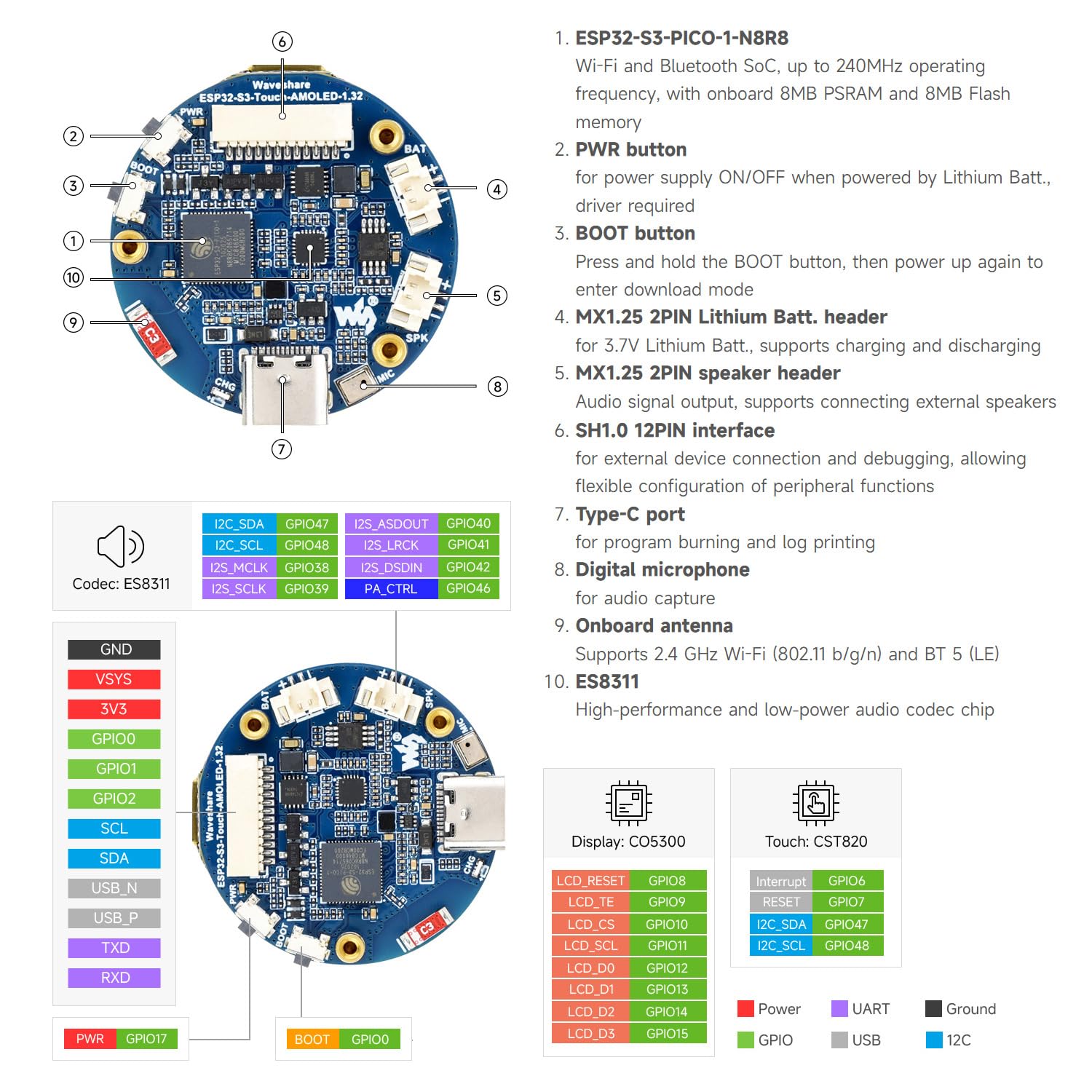

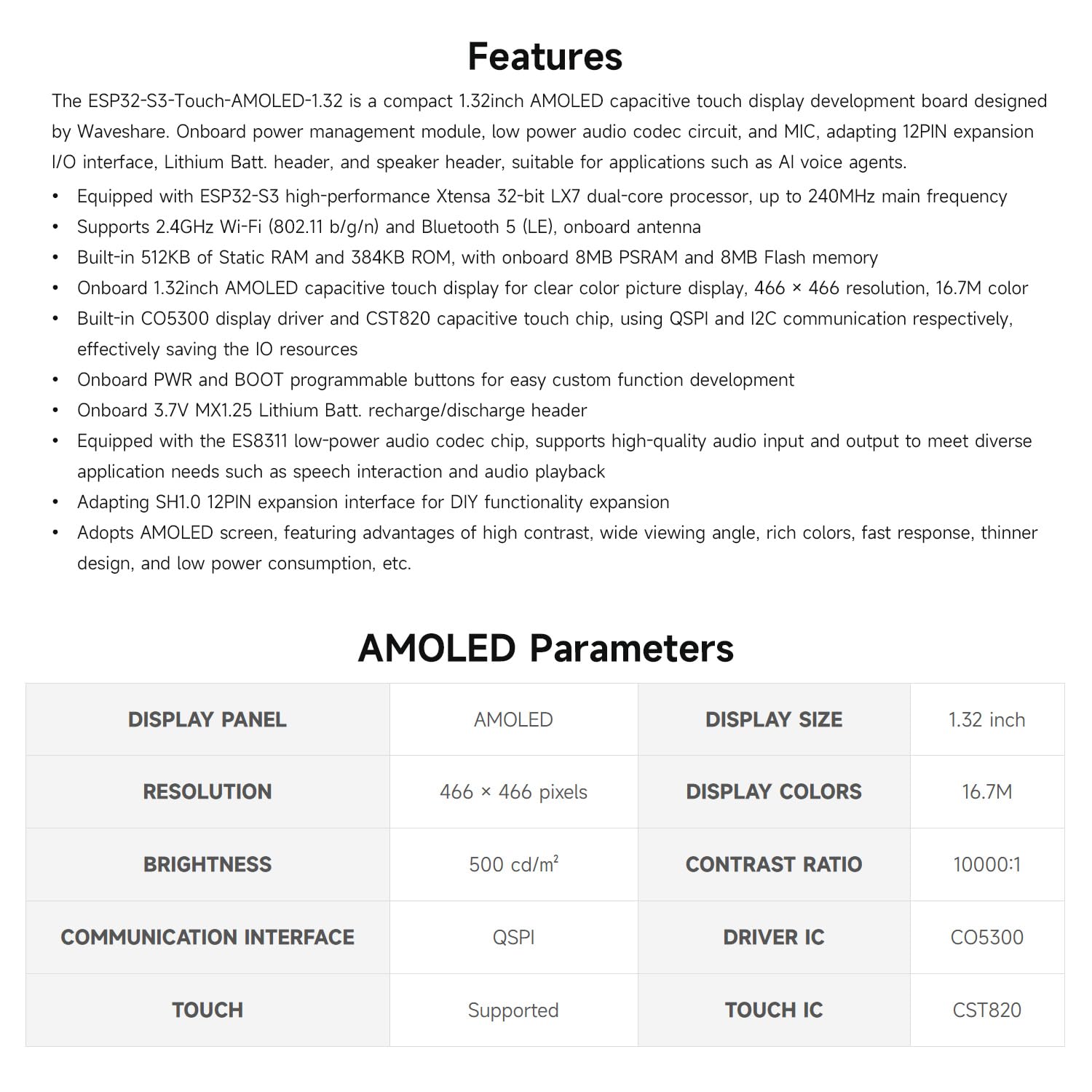

- The ESP32-S3-Touch-AMOLED-1.32 is a compact 1.32inch AMOLED capacitive touch display development board. Onboard power management module, low power audio codec circuit, and MIC, adapting 12PIN expansion I/O interface, Li Batt. header, and speaker header, suitable for applications such as AI voice agents
- Equipped with ESP32-S3 high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and BT 5 (LE), onboard antenna. QSPI and I2C communication respectively, effectively saving the IO resources. Built-in 512KB of Static RAM and 384KB ROM, with onboard 8MB PStatic RAM and 8MB Flash memory
- Onboard 1.32inch AMOLED capacitive touch display for clear color picture display, 466 x 466 resolution, 16.7M color. Built-in CO5300 display driver and CST820 capacitive touch chip, using Onboard PWR and BOOT programmable buttons for easy custom function development
- Onboard 3.7V MX1.25 Li Batt. recharge/discharge header. Equipped with the ES8311 low-power audio codec chip, supports high-quality audio input and output to meet diverse application needs such as speech interaction and audio playback
- Adapting SH1.0 12PIN expansion interface for DIY functionality expansion. Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.
