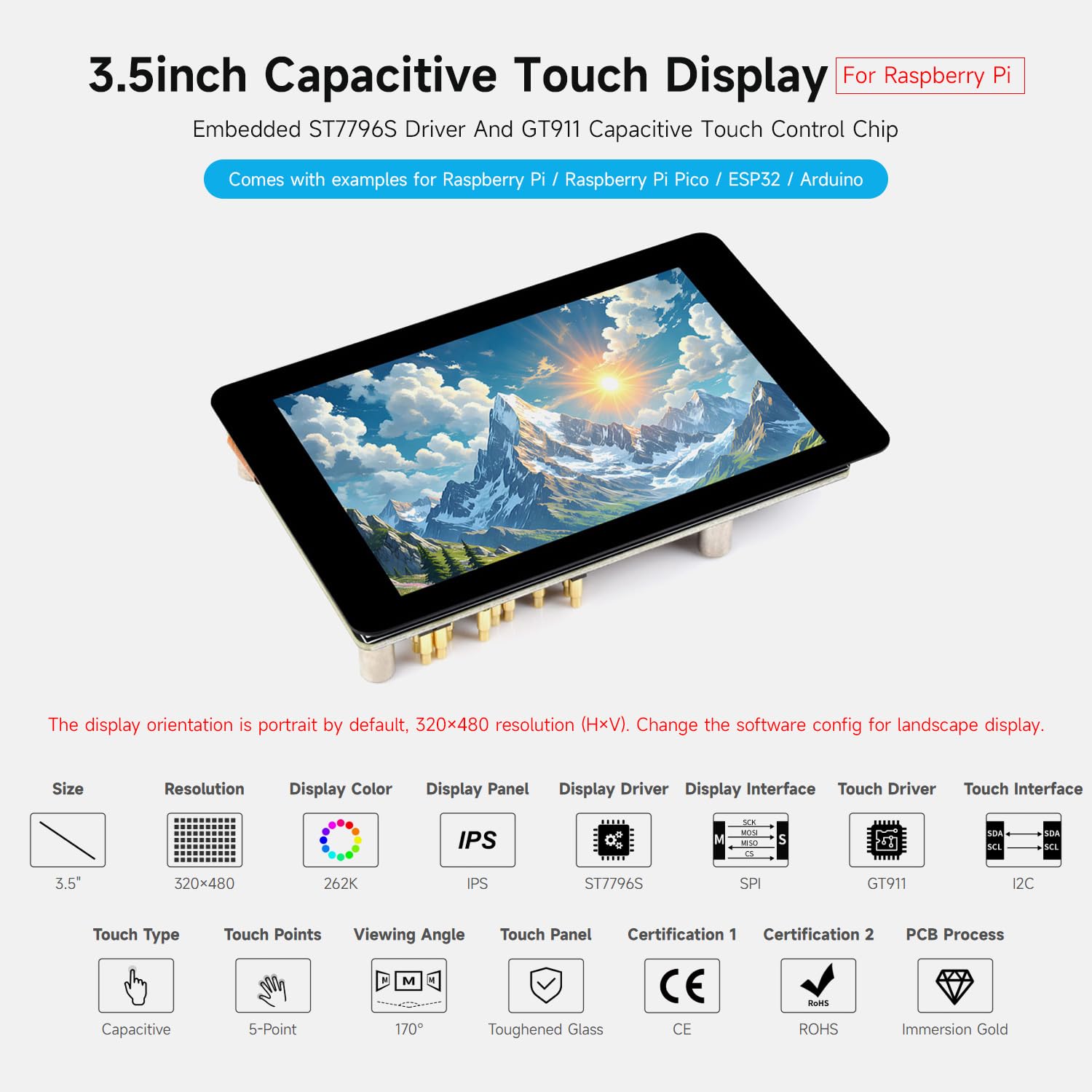

Waveshare 3.5inch Capacitive Touch Display (F) For Raspberry Pi, IPS Panel, 320x480 Resolution, 5-Point Touch, Immersion Gold Process, Toughened Glass Panel

Marchio: Waveshare
Dispositivi compatibili: Raspberry Pi, Raspberry Pi Pico, ESP32
Tecnologia memoria RAM: DDR2
Processori compatibili: Raspberry Pi BCM2835, Raspberry Pi BCM2836
Tipo di chipset: Broadcom BCM2837B0
Piattaforma: Linux
Nome modello: 3.5inch RPi LCD (F)
Modello CPU: A10
Tipo di connettore di alimentazione principale: 24 pin
Interfaccia scheda video: Integrato

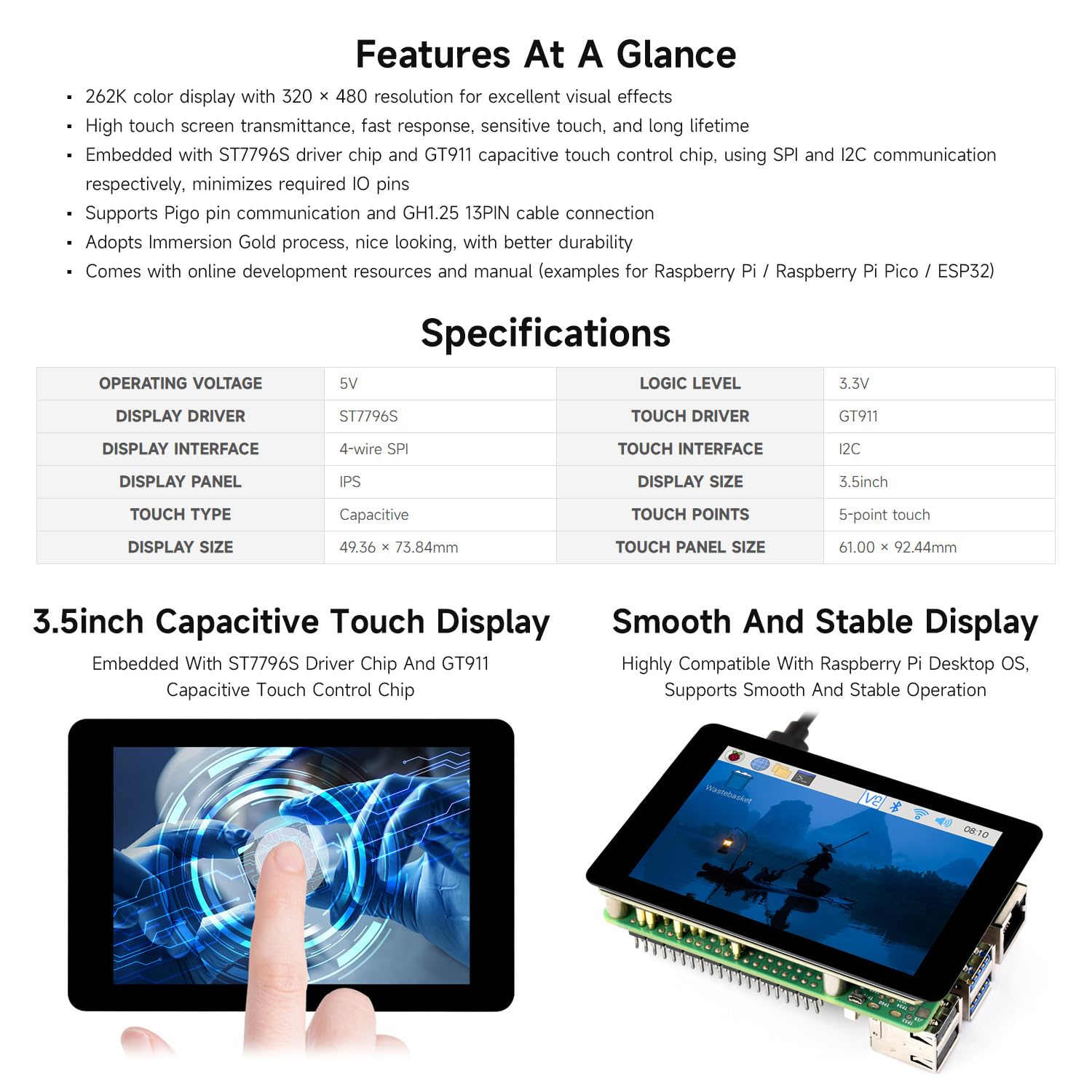

- 262K color display with 320 x 480 resolution for excellent visual effects
- High touch screen transmittance, fast response, sensitive touch, and long lifetime

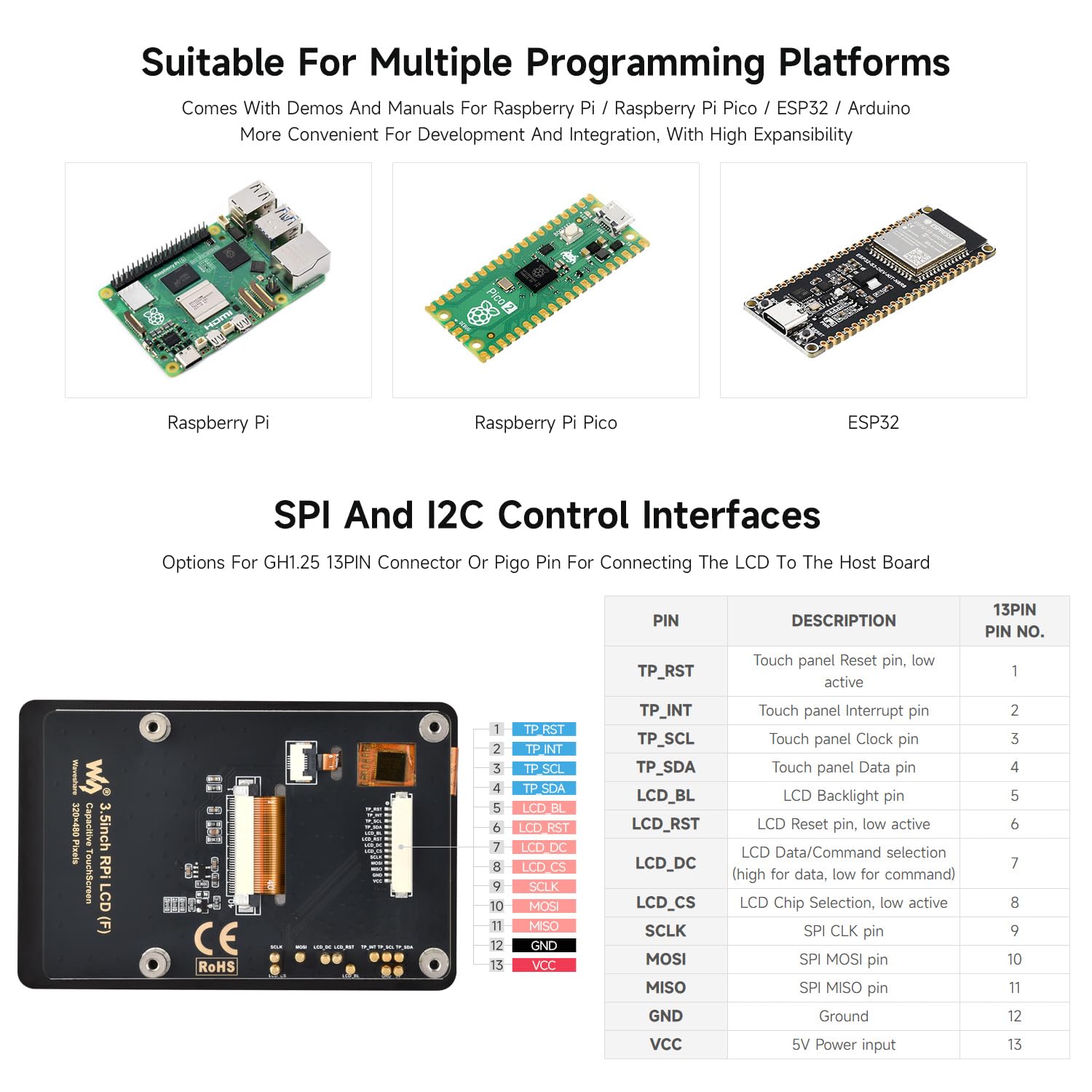

- Embedded with ST7796S driver chip and GT911 capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins

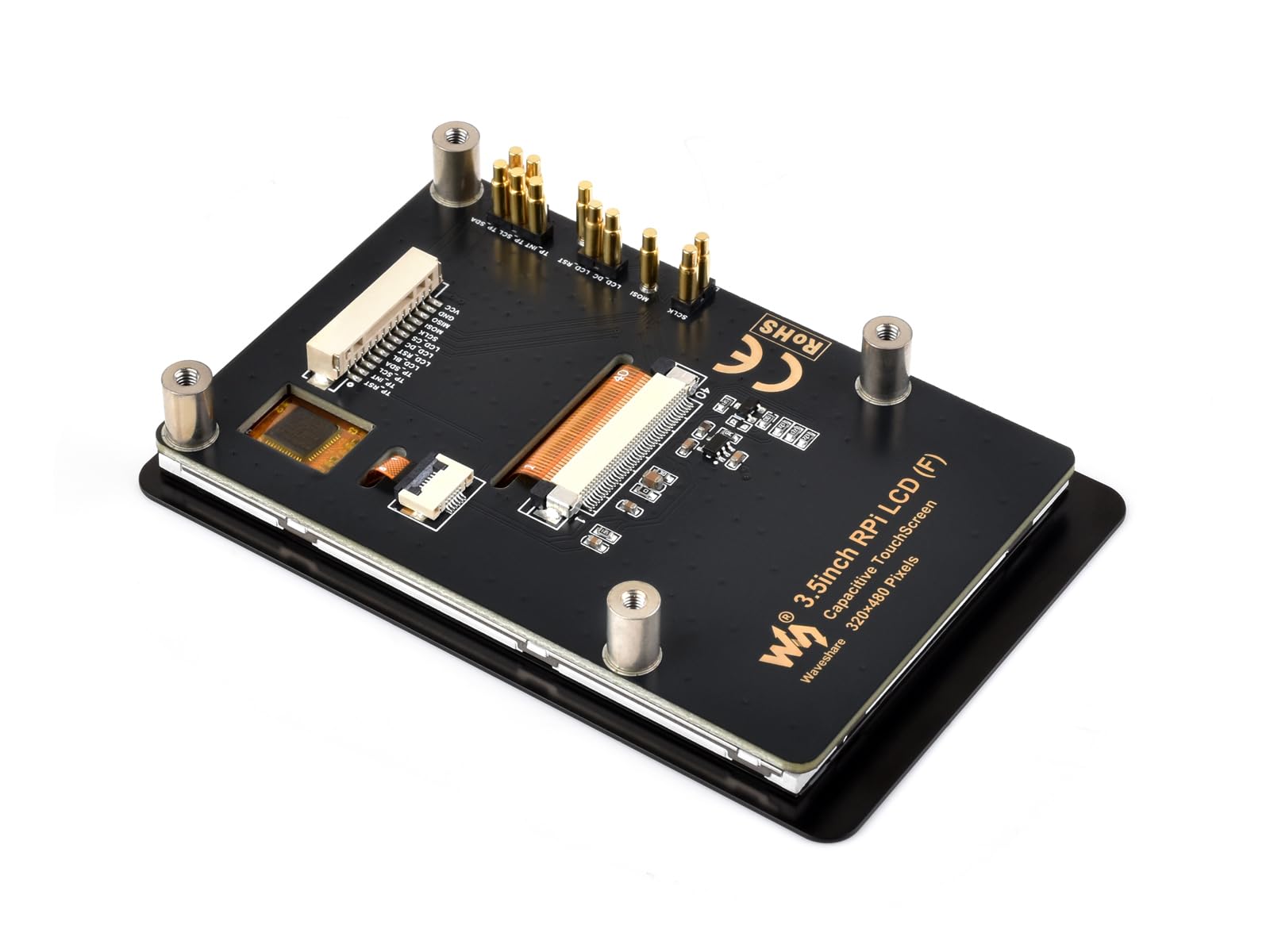

- Supports Pigo pin communication and GH1.25 13PIN cable connection. Adopts Immersion Gold process, nice looking, with better durability
- Can provide online development resources and manual (examples for Raspberry Pi / Raspberry Pi Pico / ESP32 )
